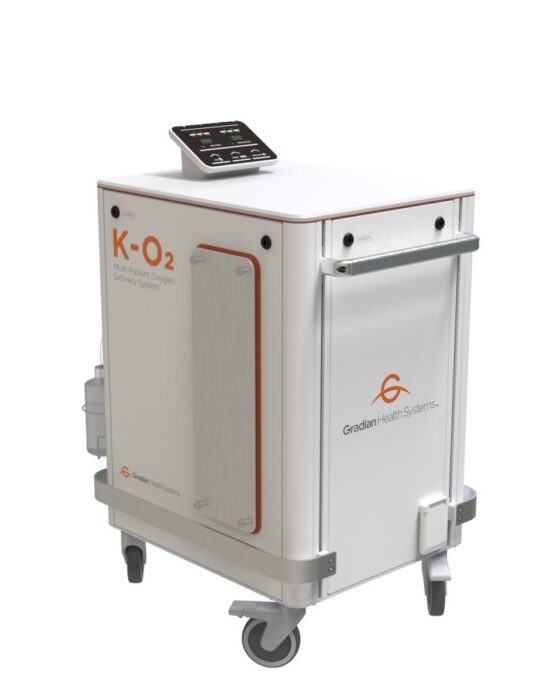

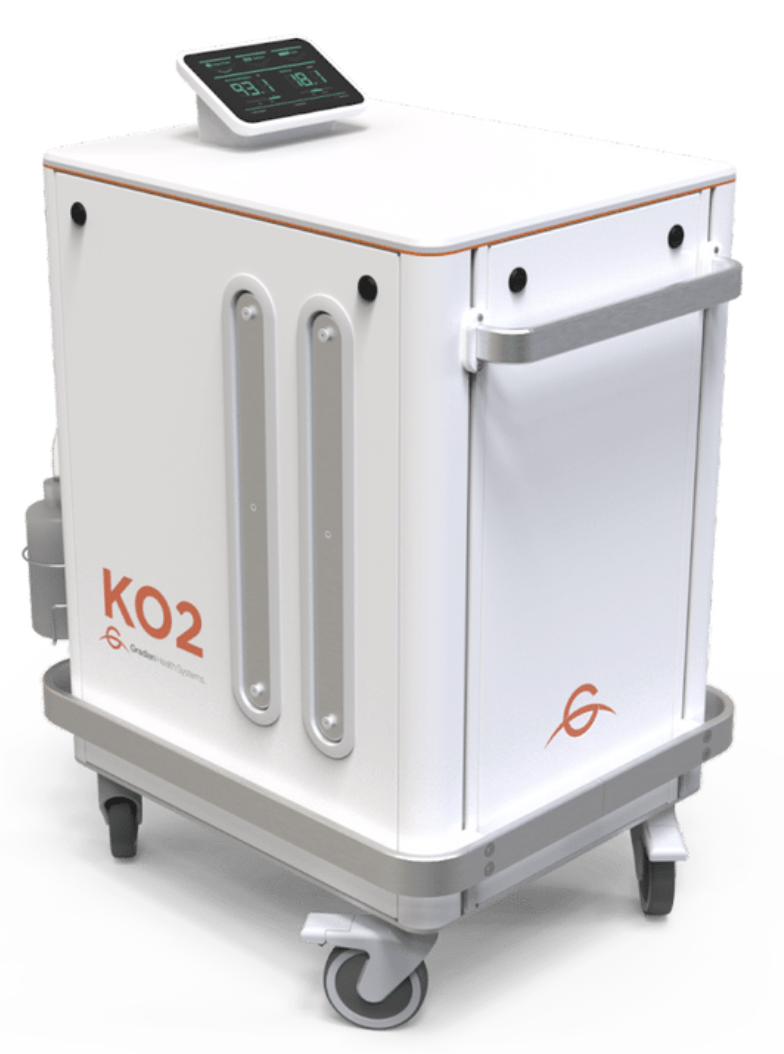

K-O2

Multi-Patient Oxygen Generator & Delivery System

Image 1 of 5
Key Features

  • MULTI-PATIENT THERAPY

    Integrated flow management and distribution for streamlined measurement and control of multiple patient outlets simultaneously, with total flow rate up to 20 LPM.

  • USER-FRIENDLY INTERFACE

    Easy-to-read display provides critical information at a glance, including oxygen purity and output flow.

  • WORKS AMIDST POWER OUTAGES

    Integrated battery backup provides at least 30 minutes of run time to cover short power outages without interrupting therapy. Standard high-pressure cylinders can also be used in the event of longer outages, with up to 6 hours of battery-enabled monitoring on the K-O2’s interface.

  • DESIGNED TO LAST

    Built specifically to work in challenging environments with high heat, humidity, dust, and unstable power, the K-O2 is designed with protection against natural elements that take other machines offline.

Image 1 of 5

    • OXYGEN GENERATION

      Output flow: Up to 20 L/min

      Output purity: Up to 95% oxygen

      Output pressure: 140 kPa (20 psi)

    • USER INTERFACE AND MONITORING

      Display: Intuitive color screen with large, easy-to-read display

      Monitoring: MonitoringAccurate, real-time oxygen concentration monitoring

      Alarms: Low concentration, Low flow, High flow, Required maintenance

      Integrated sensing: Continuous sensing technology to measure the functional health of the K-O2 to ensure optimal oxygen production and output

      Service: Robust internal analysis for performance data, enabling proactive technical maintenance for maximum uptime

    • BACKUP SYSTEMS

      Battery: 30 minutes oxygen generation6 hours monitoring and interface

      Oxygen input: Sources up to 400 kPa (58 psi)Secure mounting for E cylinderAdapters included for multiple fitting standards

      Backup switching: Automatic, depending on power availability

    • MULTI-PATIENT DISTRIBUTION SYSTEM

      Output flow: Integrated total output flow monitor, with overflow alarm

      Distribution modules: 5 modules, allowing up to 10 independent flowmeters for adult, pediatric, and neonatal patients

      Module installation: Easy-install brackets allow distribution modules to be mounted in any room, and moved between rooms if needed

      Accessory compatibility: Compatible with standard oxygen therapy accessories including bubble humidifiers, cannulas, and others

    • PHYSICAL DIMENSIONS

      Dimensions: 612 x 737 x 1081 mm

      Weight: 140 kg (309 lb)

      Construction: Aluminum frame, robust casters (2 locking), cleanable Corian top

    • ENVIRONMENTAL PROTECTION

      Dust: Long-life particle filter, with clog detection and user service reminders

      Humidity: Innovative dehumidifier to maximize life and minimize maintenance

      Electrical disturbance: Integrated voltage switcher to protect against spikes and brownouts

  • Gradian K-O2 Specifications Sheet
